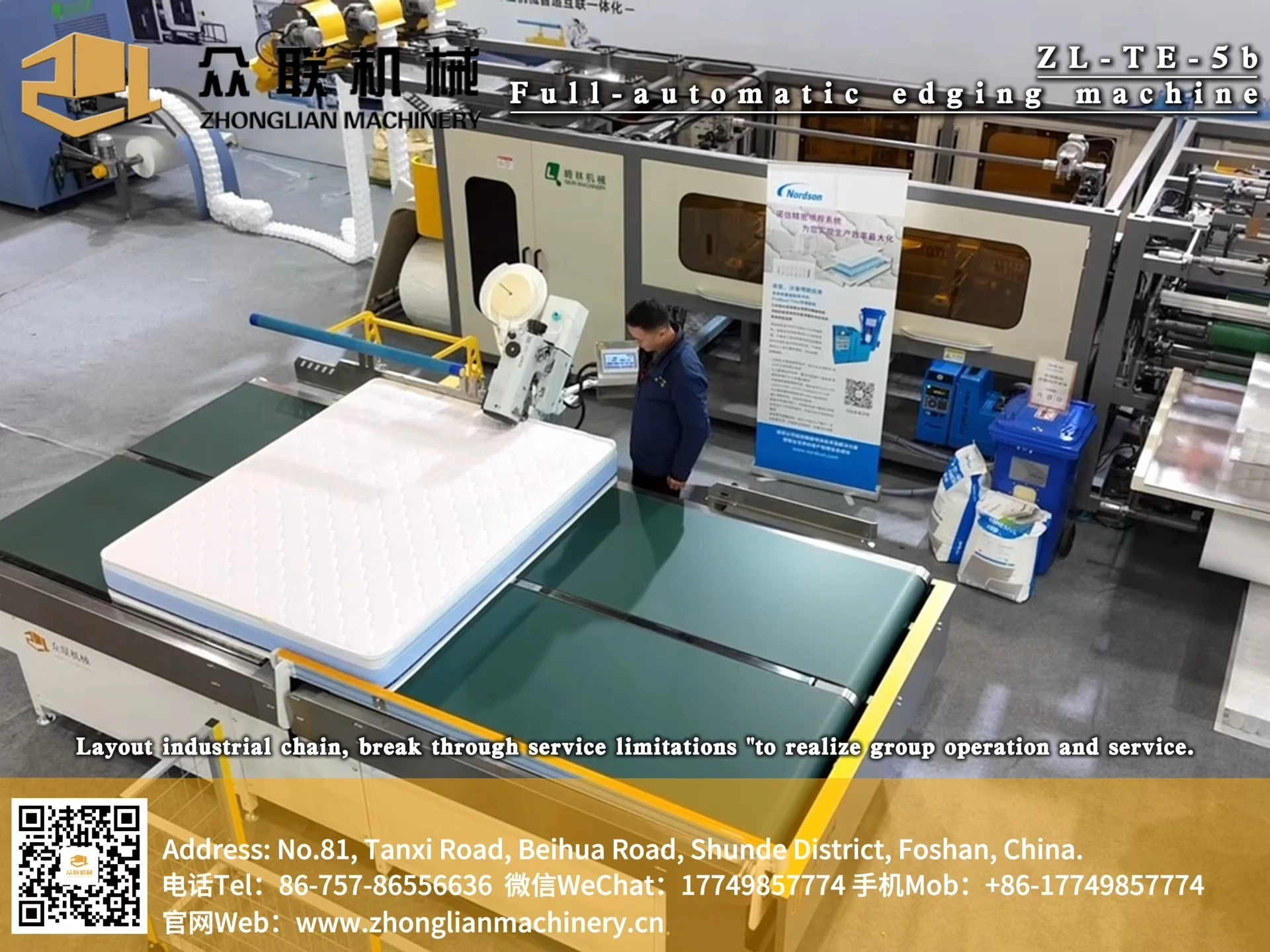

Automatic Tape Edge Machine ZL-TE-5B for mattress edge binding
This automatic tape edge machine is designed to efficiently and accurately apply tape to mattress edges, ensuring a consistent and professional finish with every use. Its advanced technology eliminates the need for manual effort, saving time and increasing productivity for mattress manufacturers.
Product Characteristic
Primarily used for mattress edge binding.
● Automatic mattress flipping function reduces labor costs;
● Dual-side flipping design effectively protects mattresses;
● Automatic cornering function enables easier operation;
● Integration of production lines to ensure efficient production of standardized products;
● Touchscreen controls head tilt angle and lifting mechanism;
● Equipped with automatic auxiliary push rods to prevent deviation;
● Auto-alignment functionality;
● When the mattress turns, the sewing machine head will automatically rise.
Product Parameter
| Production efficiency | 15~20 sheets/hour |
| Sewing thickness | 50-450mm |
| Maximum speed | 2800RMP |
| Stitch length | 3-7mm |
| Machine weight | 1500kg |
| Rated power | 3kw |
| Rated power supply | 3Phase380V50/60Hz |
| Rated air pressure | 0.6-1.0MPa |
| Frame size(LWH) | 4300*3000*900mm |
Product details display
